Front Seat Inner Belt ASSY
>>
Exploded View
Exploded View

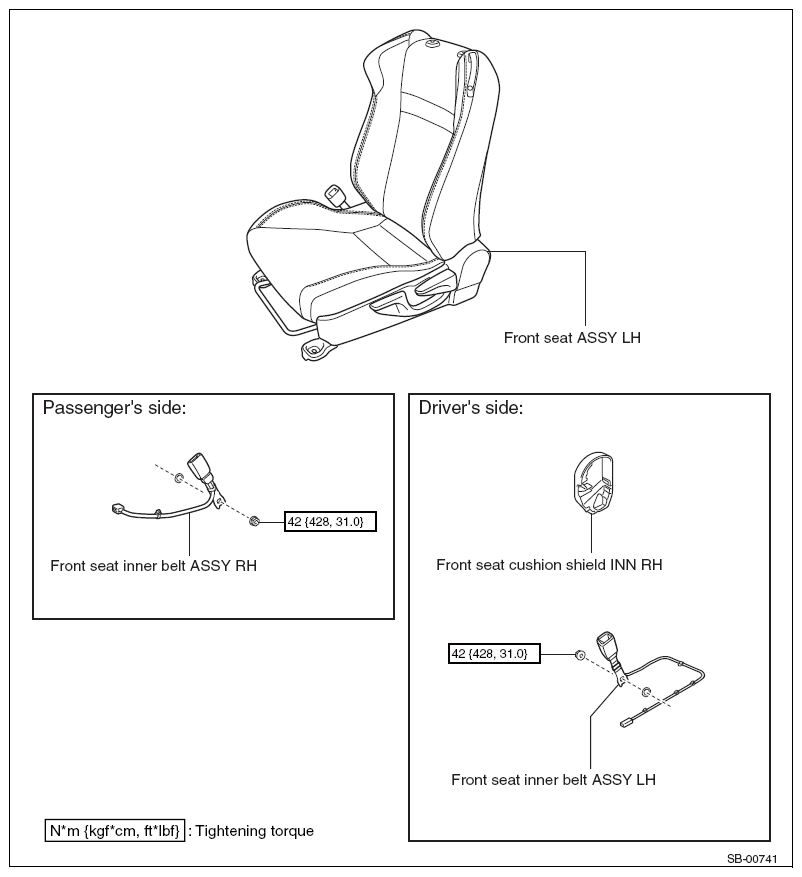

Fig 1: Front Seat Inner Belt Assembly Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
Vehicles with steering wheels on the left are mirrored.
Courtesy of SUBARU OF AMERICA, INC.
