Components With Torque Specifications

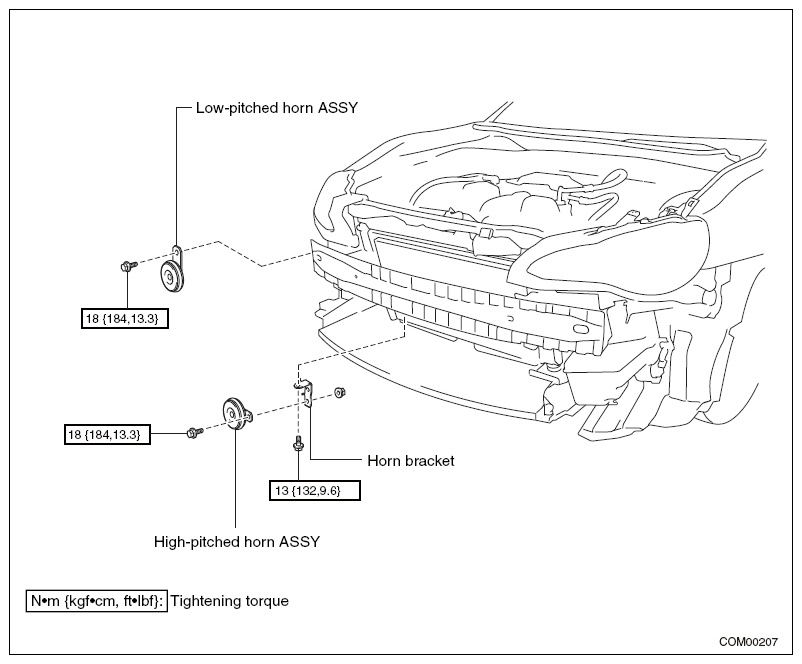

Fig 1: Locating Horn Components

G08557979

Courtesy of SUBARU OF AMERICA, INC.
