Exploded View
Exploded View

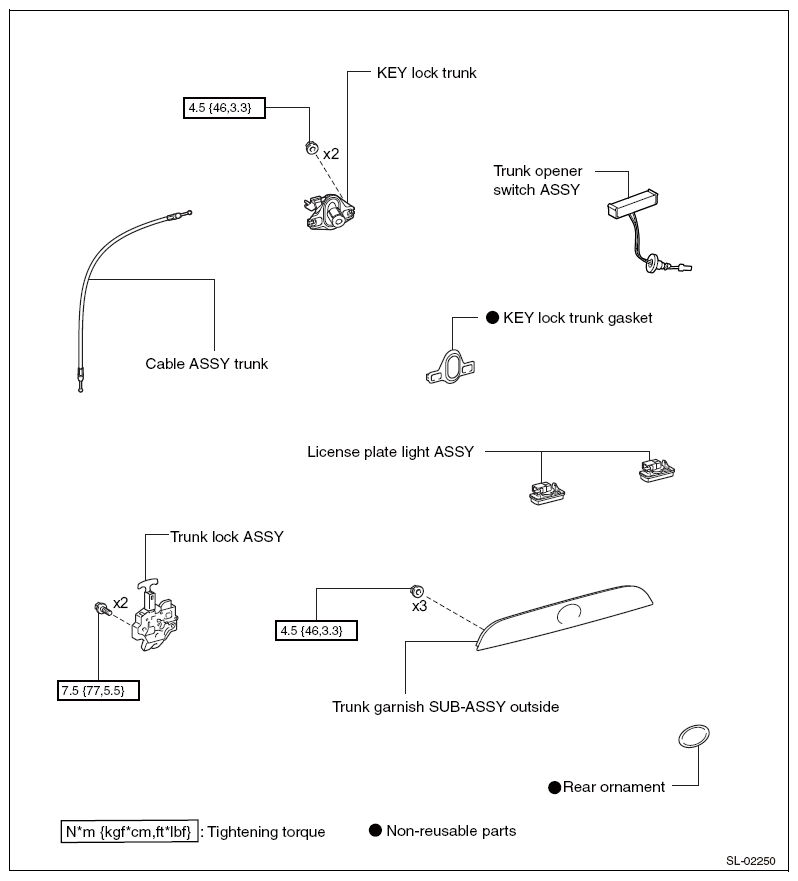

Fig 1: Trunk Panel Components With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

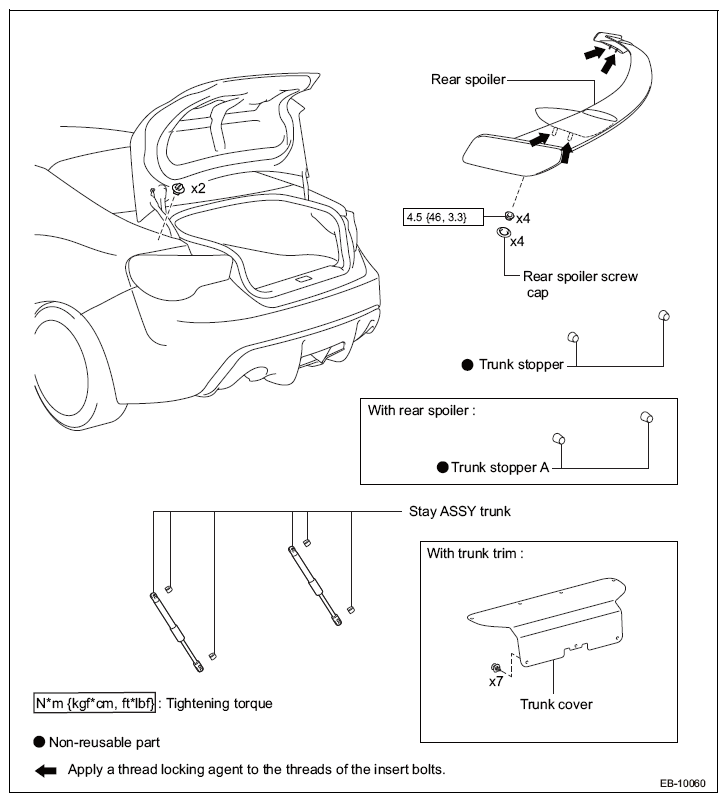

Fig 2: Trunk Panel Components With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
