Unit Inspection

  1. Inspection of the trunk opener switch ASSY
    1. Inspection of the trunk opener switch ASSY

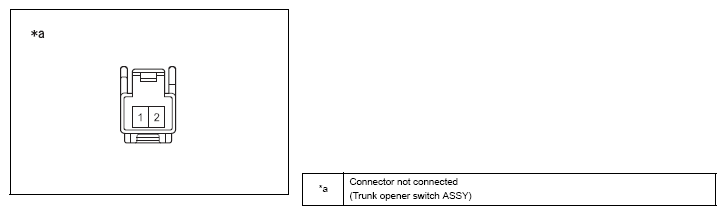

      1. Measure the resistance between the terminals.

        Resistance

      Inspection terminals Inspection conditions Standard value
      2 - 1 When the switch is not in use (OFF) 10 kΩ or more
      2 - 1 When the switch is in use (ON) Less than 1 Ω
      G12595121Courtesy of SUBARU OF AMERICA, INC.
