Exploded View

Courtesy of SUBARU OF AMERICA, INC.

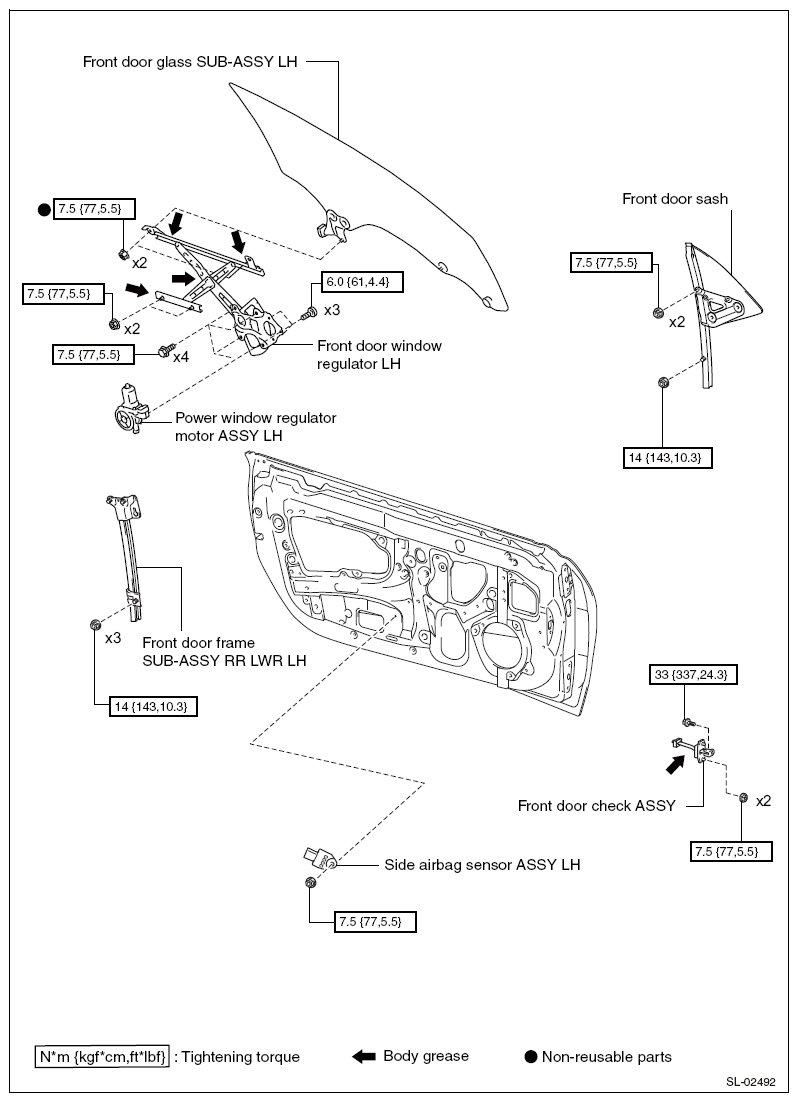

Fig 1: Front Door Components With Torque Specification (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

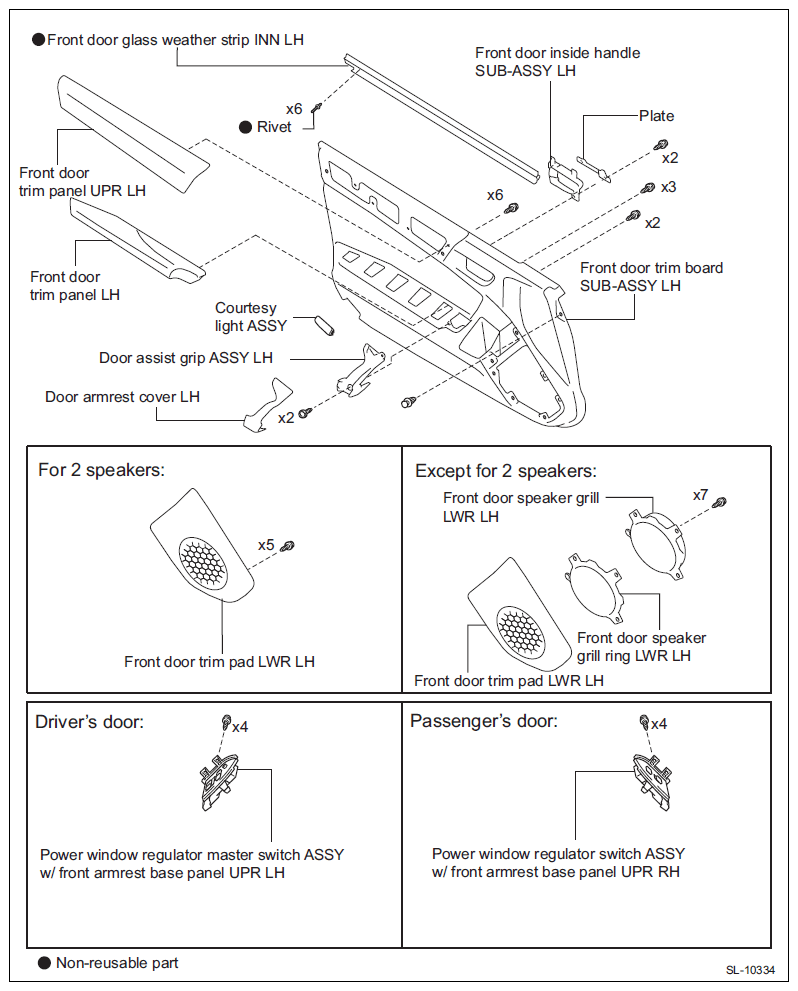

Fig 2: Front Door Components With Torque Specification (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

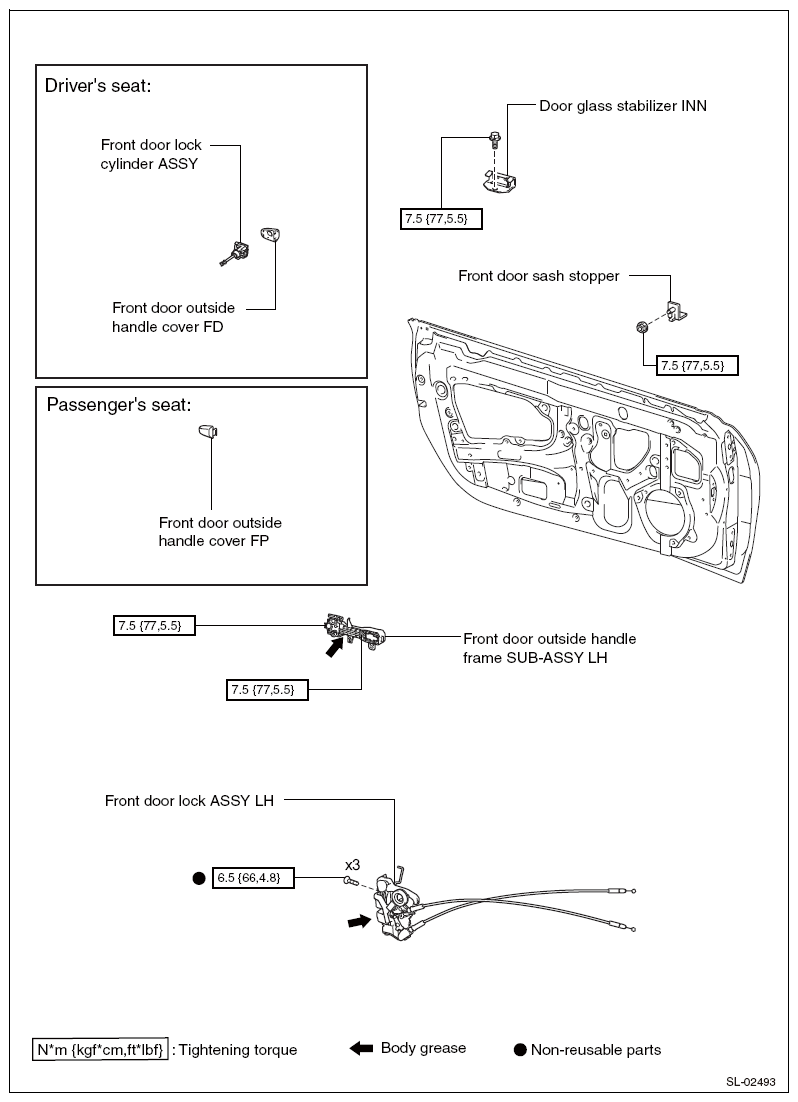

Fig 3: Front Door Components With Torque Specification (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
