Components With Torque Specifications

Fig 1: Exploded View Of Door Control Receiver Assembly Components (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

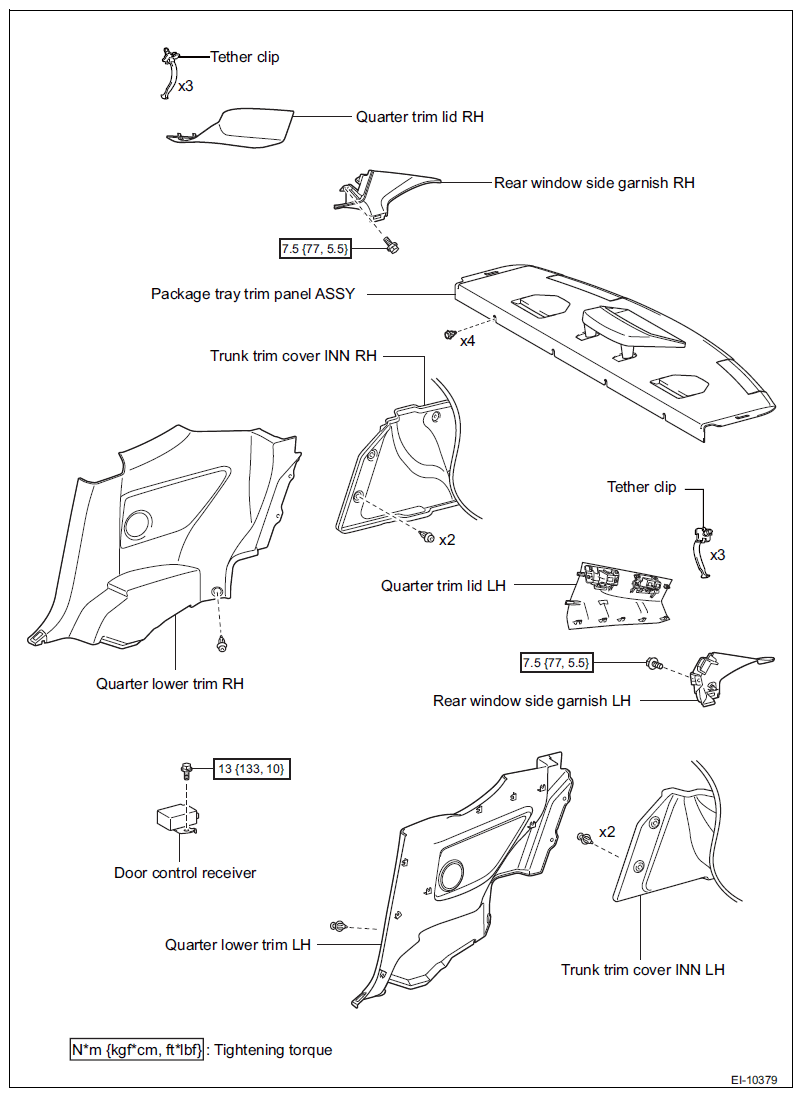

Fig 2: Exploded View Of Door Control Receiver Assembly Components (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
