Unit Inspection

  1. Check of clutch start switch ASSY
    1. Measure the resistance between terminals when operating the shaft.

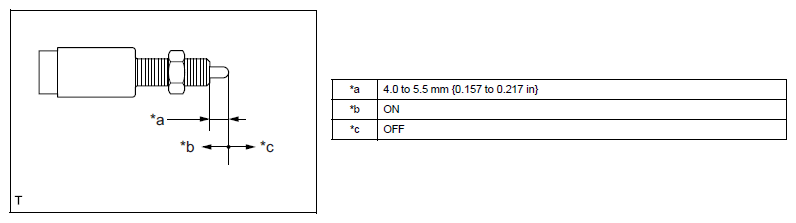

    G12587991Courtesy of SUBARU OF AMERICA, INC.

    Resistance

    Inspection terminals Inspection conditions Standard value
    1 - 2 When shaft is pressed in (ON) Less than 1 Ω
    When shaft is not pressed in (OFF) 10 k Ω or more
  2. Check of clutch switch ASSY
    1. Measure the resistance between terminals when operating the shaft.

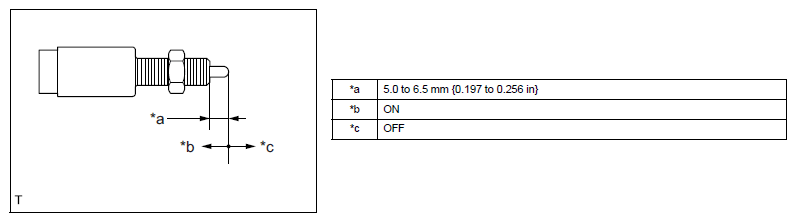

    G12587992Courtesy of SUBARU OF AMERICA, INC.

    Resistance

    Inspection terminals Inspection conditions Standard value
    1 - 2 When shaft is pressed in (ON) Less than 1 Ω
    When shaft is not pressed in (OFF) 10 k Ω or more
