2019
>>
BRZ Limited, Standard Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Engine Cooling System
>>
Radiator ASSY (FA20)
>>
Exploded View
Exploded View

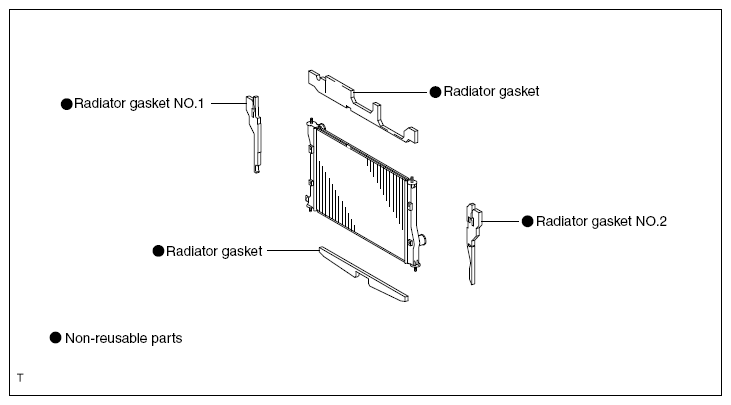

Fig 1: Radiator Assembly (FA20) Components With Torque Specification (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Radiator Assembly (FA20) Components With Torque Specification (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Radiator Assembly (FA20) Components With Torque Specification (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
