Unit Inspection

  1. Inspection of unlock warning switch ASSY
    1. Resistance check
      1. Measure the resistance between the terminals.
    STANDARD VALUE RESISTANCE SPECIFICATION

    Inspection terminals Inspection conditions Standard value
    1(UN+) - 2(UN-) When pin is pressed in Less than 1 Ω
    1(UN+) - 2(UN-) When pin is not pressed in 10 kΩ or more

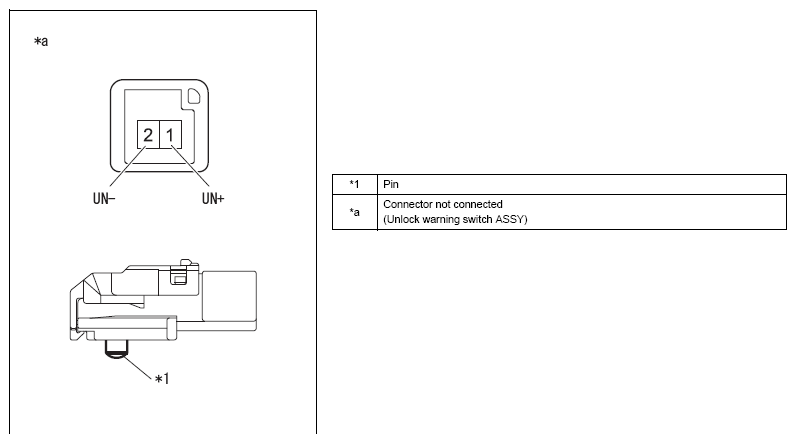

    G12589220Courtesy of SUBARU OF AMERICA, INC.
