Steering Wheel: Removal

  1. Correct handling and precautions for operation
    WARNING: As this maintenance procedure may have an effect on the SRS airbag system, be sure to check the SRS airbag system precautions before commencing work. (Refer to PRECAUTIONS )
  2. Confirm that the front tires are in the straight-ahead position.
  3. Disconnection of the battery ground terminal
    WARNING: As the airbag and pretensioner system is equipped with a backup power supply, if you start work within 60 seconds of disconnecting the battery ground terminal, the airbag may accidentally deploy.
    CAUTION: To prevent damage to the moldings, completely wind down both the driver's and passenger's door windows.
  4. Removal of the driver's airbag module (Refer to DRIVER SIDE AIR BAG MODULE )
  5. Removal of the steering wheel ASSY

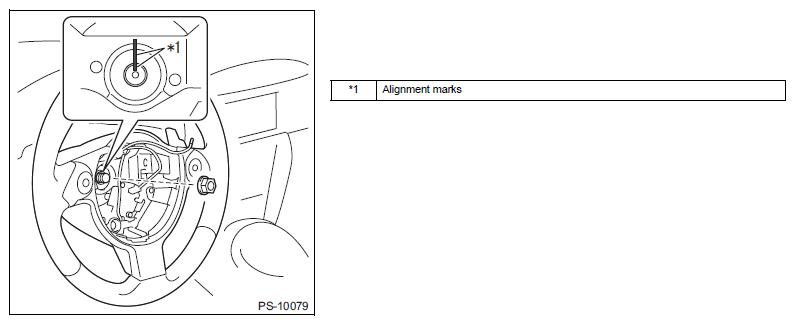

    1. Undo the nut and place an alignment mark over the steering wheel ASSY and steering column ASSY.
      G12591315Courtesy of SUBARU OF AMERICA, INC.
  6. Removal of the transmission shift switch (with paddle shifter) (Refer to TRANSMISSION SHIFT SWITCH )
  7. Removal of the cruise control main switch. (Refer to CRUISE CONTROL MAIN SWITCH )
  8. Removal of steering pad switch (Refer to STEERING PAD SWITCH )
