Third Seat Belt
Third Seat Belt

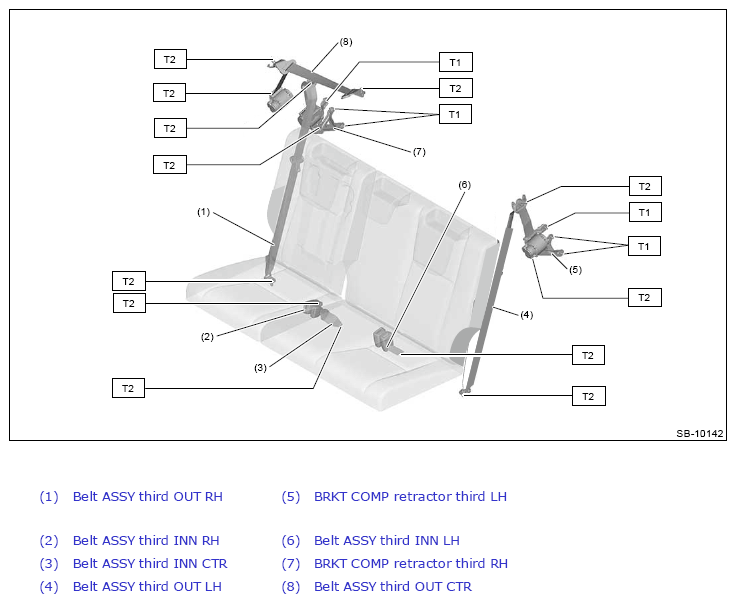

Fig 1: Third Seat Belt Components Location (With Tightening Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 25 (2.5, 18.4)
T2: 30 (3.1, 22.1)
Courtesy of SUBARU OF AMERICA, INC.
