Front Reduction Drive Gear And Front Reduction Driven Gear

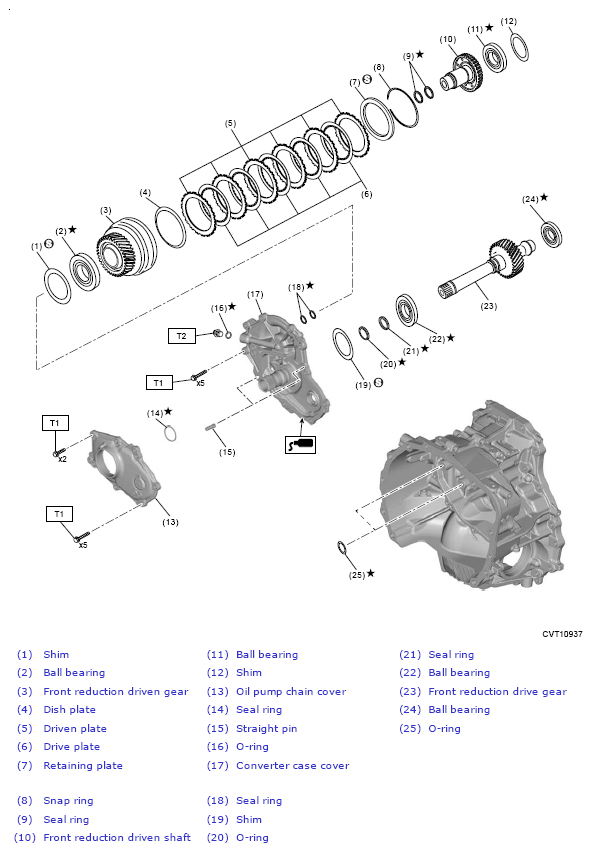

Fig 1: Exploded View Of Front Reduction Drive Gear And Front Reduction Driven Gear (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.4, 17.7)

T2: 25 (2.5, 18.4)
