Steering Heater Relay

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .
  4. Remove the body integrated unit. Ref. to SECURITY AND LOCKS>BODY INTEGRATED UNIT>REMOVAL .

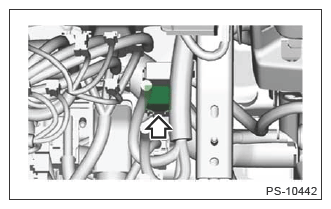

  5. Remove the steering heater relay.
G13200386Courtesy of SUBARU OF AMERICA, INC.
