Curtain Airbag Module

CAUTION: The curtain airbag module cannot be reused if removed from the vehicle once, even if it has not operated yet.

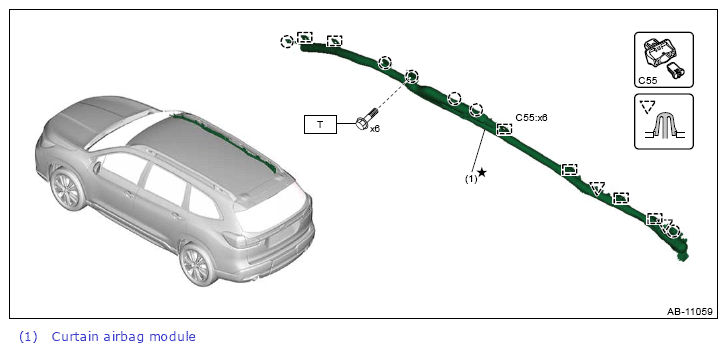

Fig 1: Curtain Airbag Module Components Location (With Tightening Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
