Home >> Subaru >> 2019 >> Ascent Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Diagnostics) (3 Of 4) >> Diagnostic Procedure with Diagnostic Trouble Code (DTC) >> DTC P1498: Coil 4 EGR "A" Control Circuit Low >> Component Description

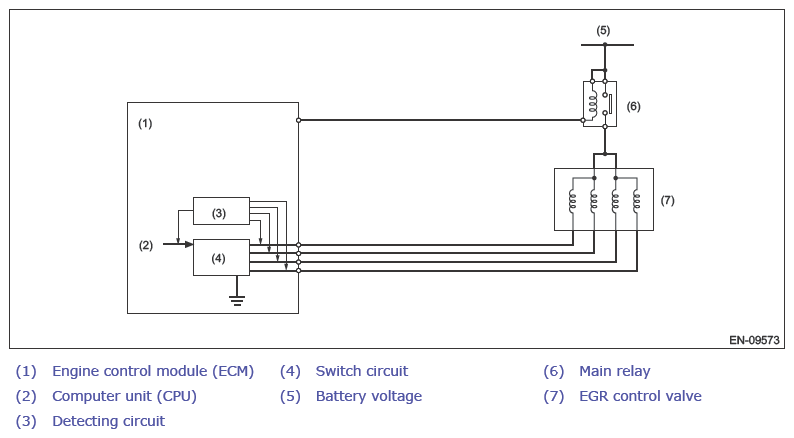

Component Description

G13202560Courtesy of SUBARU OF AMERICA, INC.
