EGR Pipe: Removal

  1. Disconnect the ground cable from battery, Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .
  3. Disconnect the connector (A).
  4. Remove the bolts securing the throttle body and throttle body stay, and move the throttle body aside so that it does not interfere with the work.
    G13198166Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the nuts securing the EGR control valve.
    G13198505Courtesy of SUBARU OF AMERICA, INC.

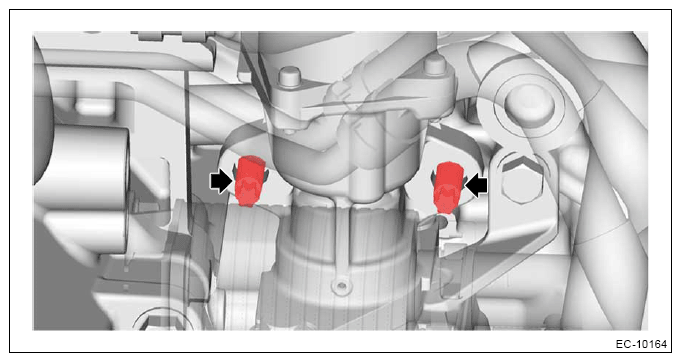

  6. Remove the stud bolt using TORX® socket E8.
    G13198511Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the nuts securing the EGR pipe No. 2.
    G13198180Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the stud bolt using TORX® socket E5, and remove the EGR pipe No. 2.
    G13198513Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the EGR pipe No. 1 from the intake manifold assembly.
    G13198205Courtesy of SUBARU OF AMERICA, INC.
