EGR Cooler: Installation

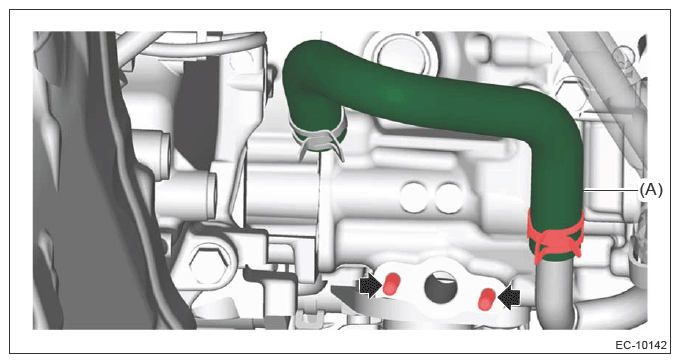

Connect the water hose (A).
Install the stud bolt.
Tightening torque:

6.4N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the EGR control valve. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>EGR CONTROL VALVE>INSTALLATION .

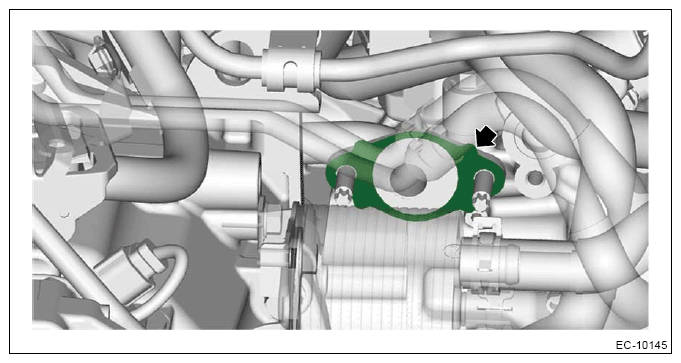

Set a new gasket to the EGR cooler.

Courtesy of SUBARU OF AMERICA, INC.

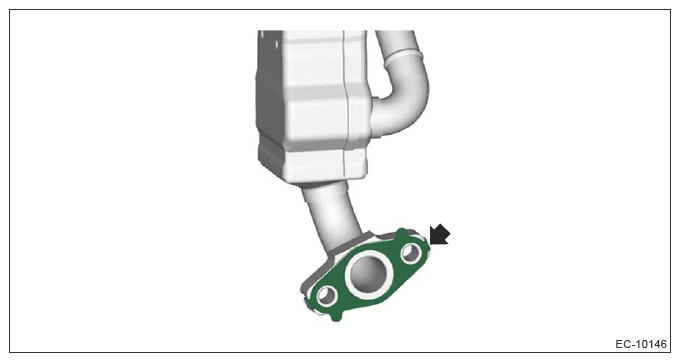

Set new gasket to the stud bolt.

Courtesy of SUBARU OF AMERICA, INC.
Set the EGR cooler together with the EGR control valve, and temporarily tighten the nuts and bolts.

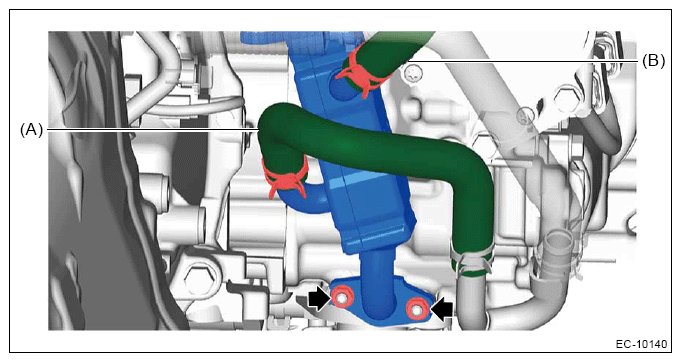

Connect the water hose (A) and the water hose (B).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

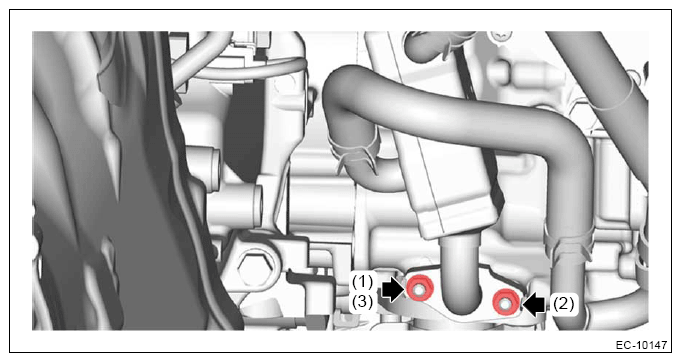

Tighten the nuts securing the EGR cooler in the order of (1) → (2) → (3).
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Fig 1: EGR Cooler Nuts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

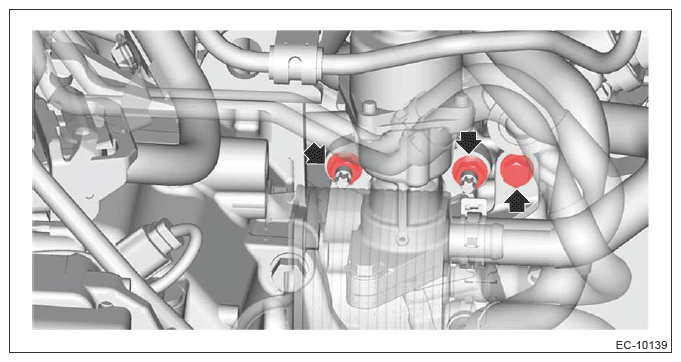

Tighten the nuts securing the EGR control valve and the bolts securing the EGR cooler in the order of (1) → (2) → (3) → (4).
Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 2: EGR Control Valve Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

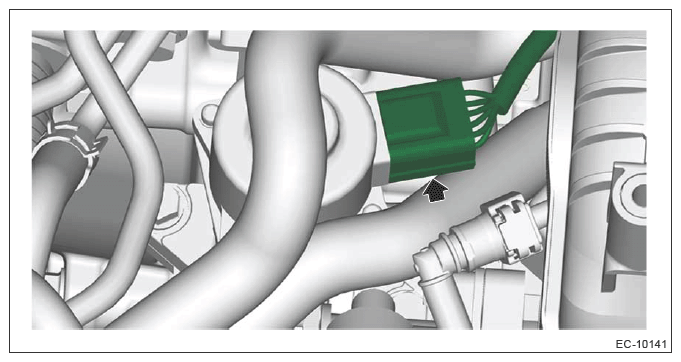

Connect the connector to the EGR control valve.

Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
