Check Valve: Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the intake duct No. 2. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTAKE DUCT>REMOVAL>INTAKE DUCT NO. 2 .
  3. Remove the clip from the vacuum hose stay.
  4. Disconnect the vacuum hose (A), and remove the check valve No. 1.
    G13198484Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the generator. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>GENERATOR>REMOVAL .
  6. Disconnect the vacuum hose (A) from the intake manifold assembly.
  7. Disconnect the vacuum hose (B) from the intake manifold assembly, and remove the check valve No. 2 from the vacuum hose (B).
    G13198485Courtesy of SUBARU OF AMERICA, INC.

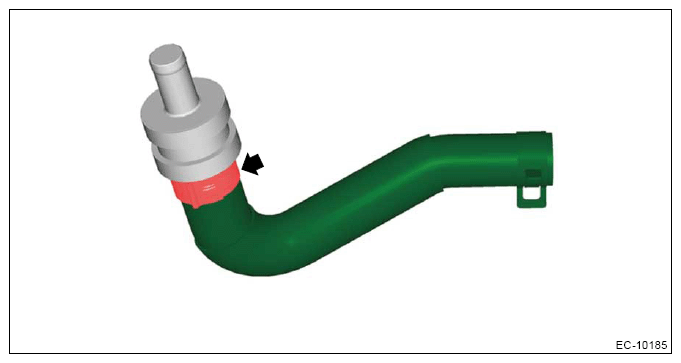

  8. Break the clamp, and remove the vacuum hose from the check valve No. 2.
    G13198486Courtesy of SUBARU OF AMERICA, INC.
  9. Disconnect the vacuum hose (A) from the purge control solenoid valve, and remove the vacuum pipe and vacuum hose.
    G13198487Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the vacuum hose from the vacuum pipe.
    G13198488Courtesy of SUBARU OF AMERICA, INC.
  11. Lift up the vehicle.
  12. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  13. Disconnect the vacuum hose from the intake duct No. 1.
    G13198489Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the vacuum hose stay.
    G13198490Courtesy of SUBARU OF AMERICA, INC.
