Emission Control Systems (Aux. Emission Control Devices): Canister: Installation

  1. When installing the drain tube

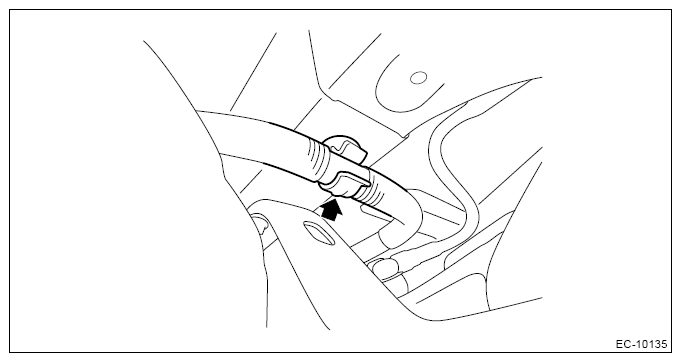

    1. Install the drain tube to the tube clamp.
      G13198468Courtesy of SUBARU OF AMERICA, INC.

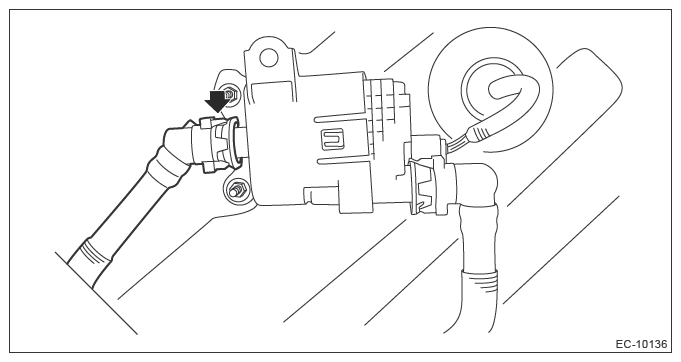

    2. Connect the drain tube to the leak check valve assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .
      G13198467Courtesy of SUBARU OF AMERICA, INC.
    3. Install the spare tire.

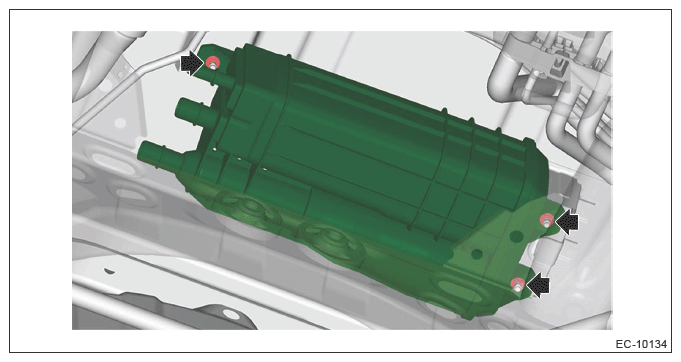

  2. Install the canister.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

    G13198466Courtesy of SUBARU OF AMERICA, INC.

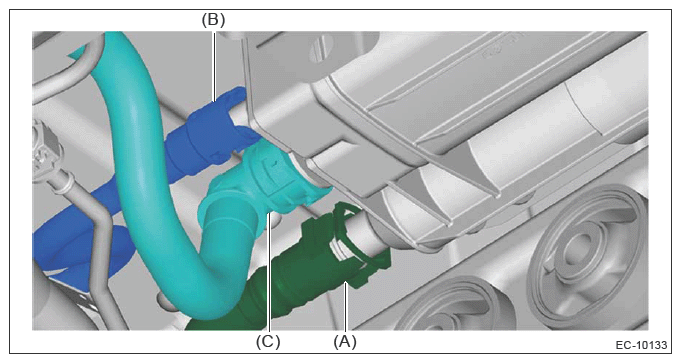

  3. Connect the drain tube (A). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE D) .
  4. Connect the purge tube (B). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE C) .
  5. Connect the vent tube (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>FUEL DELIVERY AND EVAPORATION LINES>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE E) .
    G13198465Courtesy of SUBARU OF AMERICA, INC.
  6. Install the rear differential. Ref. to DIFFERENTIALS>REAR DIFFERENTIAL (VB-TYPE)>INSTALLATION .
