Relay and Fuse: Location

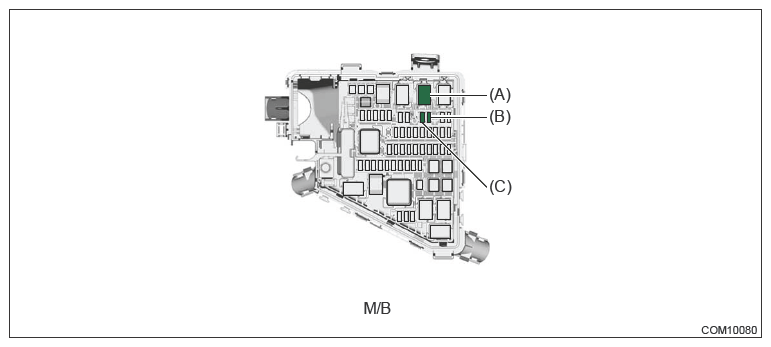

G13200947Courtesy of SUBARU OF AMERICA, INC.
Main fuse box (M/B) Horn relay (A)
Fuse 7.5 A (horn ASSY Hi) (B)
Fuse 7.5 A (horn ASSY Lo) (C)
NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT .
