Rear Lock Button: Removal

NOTE: The rear lock button is integrated with the switch - opener rear gate.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
  3. Remove the switch opener rear gate. Ref. to SECURITY AND LOCKS>REAR GATE OPENER BUTTON>REMOVAL .
  4. Remove the switch request (lock).
    CAUTION: When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
    1. Remove the screws, and remove the garnish assembly rear gate LWR.

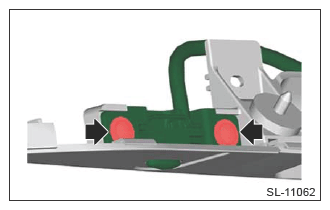

    2. Remove the screws, and remove the switch request (lock).
    G13201479Courtesy of SUBARU OF AMERICA, INC.
