Wiper Blade: Removal: Front
CAUTION:

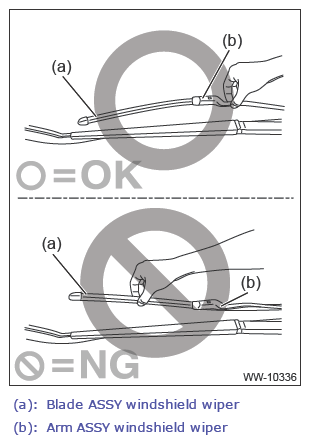

When standing up the arm assembly windshield wiper, make sure to hold the arm portion. Holding the blade portion may cause the blade deformation due to warpage.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the blade assembly windshield wiper.
- Press the lock button shown as (1).
- Pull the blade assembly windshield wiper in the direction of arrow to remove as shown in (2).
 Courtesy of SUBARU OF AMERICA, INC.
|
