Wiper Blade: Assembly: Rear

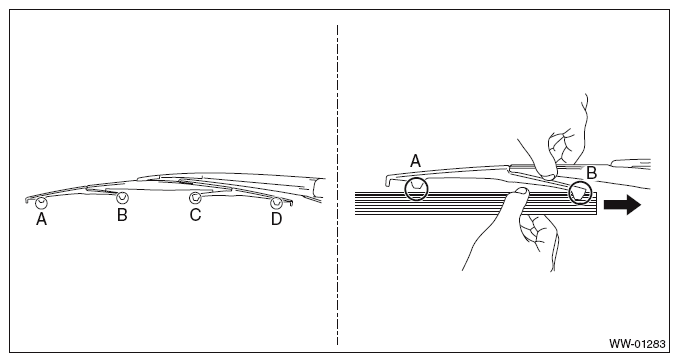

  1. Insert the rubber assembly rear wiper into claw (B).
    G10272588Courtesy of SUBARU OF AMERICA, INC.

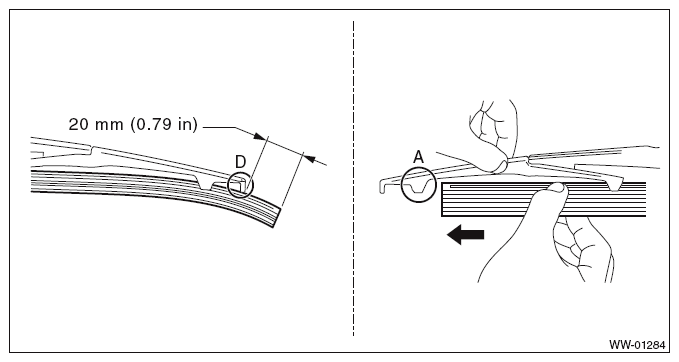

  2. Insert the rubber assembly rear wiper until its top end protrudes approx. 20 mm (0.79 in) from stopper (D).
  3. Insert the rubber assembly rear wiper into claw (A).
G10272589Courtesy of SUBARU OF AMERICA, INC.
