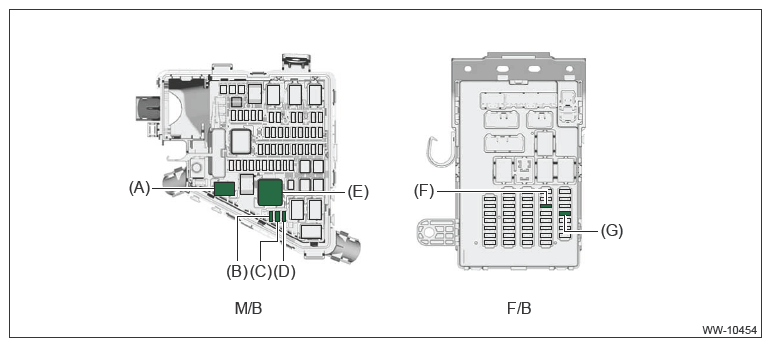

Relay and Fuse: Location
| Main fuse box (M/B) | Rear wiper relay | (A) |
| Fuse 30 A (front wiper, combination switch (wiper)) | (B) | |
| Fuse 15 A (front washer) | (C) | |
| Fuse 15 A (rear wiper, rear washer) | (D) | |
| Wiper relay | (E) | |
| Fuse & relay box (F/B) | Fuse 7.5 A (combination switch (wiper)) | (F) |
| Fuse 10 A (rain sensor) | (G) |
NOTE:
For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
