Entertainment System: Woofer: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>SAFETY .
  2. Remove the floor mat side, floor mat center, and box sub trunk assembly.
    G13200476Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the third-row seats. Ref. to SEATS>THIRD SEAT .
  4. Remove the trim panel assembly apron RH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .

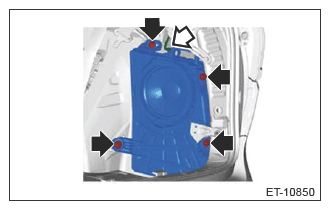

  5. Remove the speaker assembly woofer.
    1. Disconnect the connector.
    2. Remove the bolts and remove the speaker assembly woofer.
    G13201862Courtesy of SUBARU OF AMERICA, INC.
