Rearview Camera Assembly

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate LWR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the garnish assembly rear gate. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE GARNISH>REMOVAL .
  4. Remove the rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the rearview camera assembly because it is a precision equipment.
    1. Disconnect the connector.
    2. Disconnect the claws and then remove the rearview camera assembly.

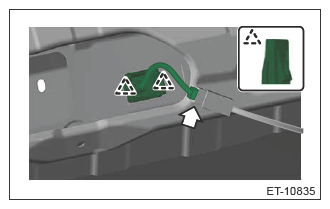

    G13201897Courtesy of SUBARU OF AMERICA, INC.
