PCV System
PCV System

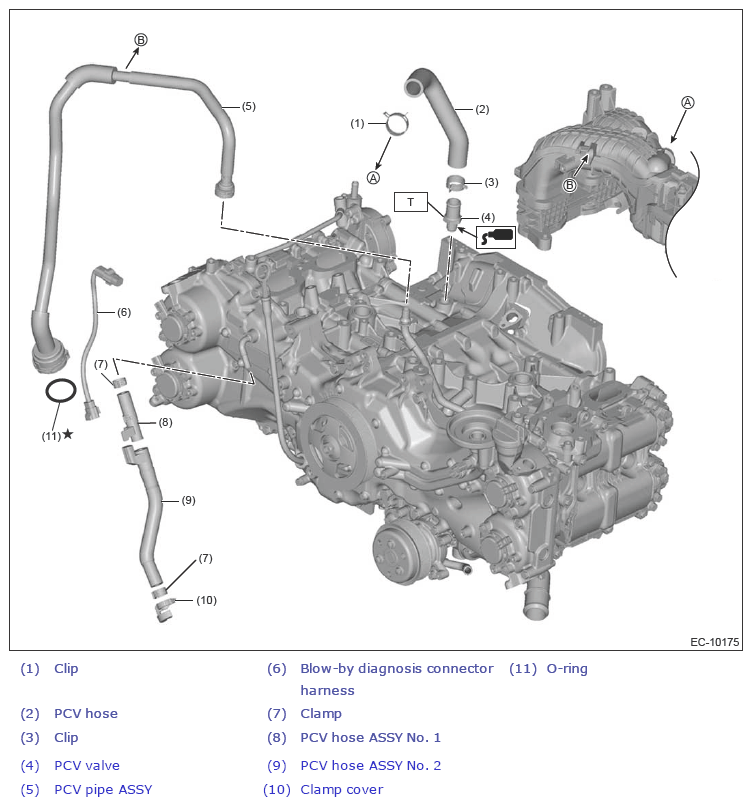

Fig 1: PCV System Components Location (With Tightening Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
Courtesy of SUBARU OF AMERICA, INC.
