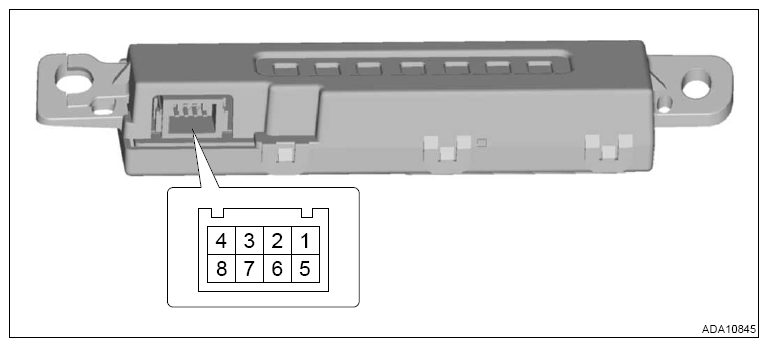

Electrical Specification
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| 1 ↔ Chassis ground | Battery power supply | Always | 10 - 16 V |
| 2 ↔ Chassis ground | Ignition power supply | Ignition switch OFF → ON | 0 V → 10 - 16 V |
| 3 ↔ Chassis ground | GND | Always | Less than 1 Ω |
| 4 | CAN+ | Cannot be measured | - |
| 5 | CAN- | Cannot be measured | - |
| 6 | - | - | - |
| 7 | - | - | - |
| 8 | - | - | - |
