Clutch Pedal

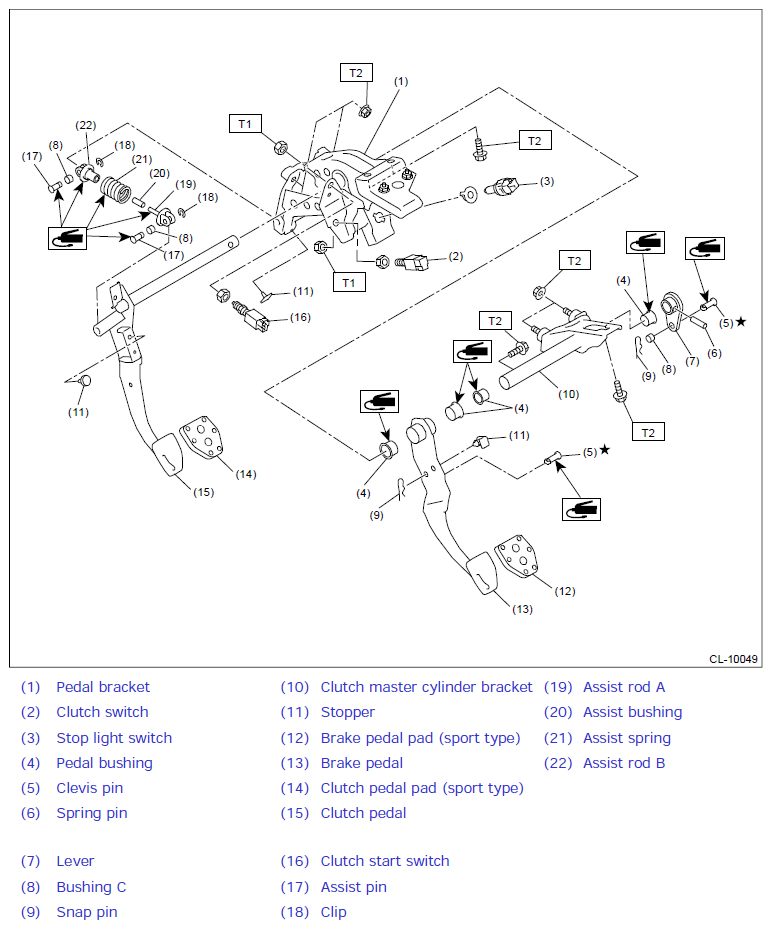

Fig 1: Exploded View Of Clutch Pedal Components

G12448485

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)
