Installation With Torque Specification

Install in the reverse order of removal.

NOTE:

Use a new gasket.
After installing, check the engine oil level and replenish it if necessary. Ref. to LUBRICATION(STI)>Engine Oil>INSPECTION .

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 54 N.m (5.5 kgf-m, 39.8 ft-lb)

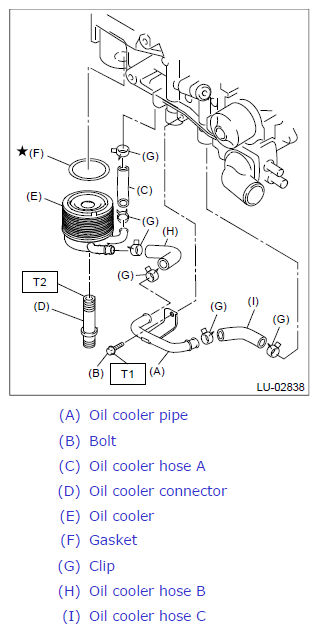

Fig 1: Engine Oil Cooler Components

Courtesy of SUBARU OF AMERICA, INC.
