Diagnostic Method: Notes

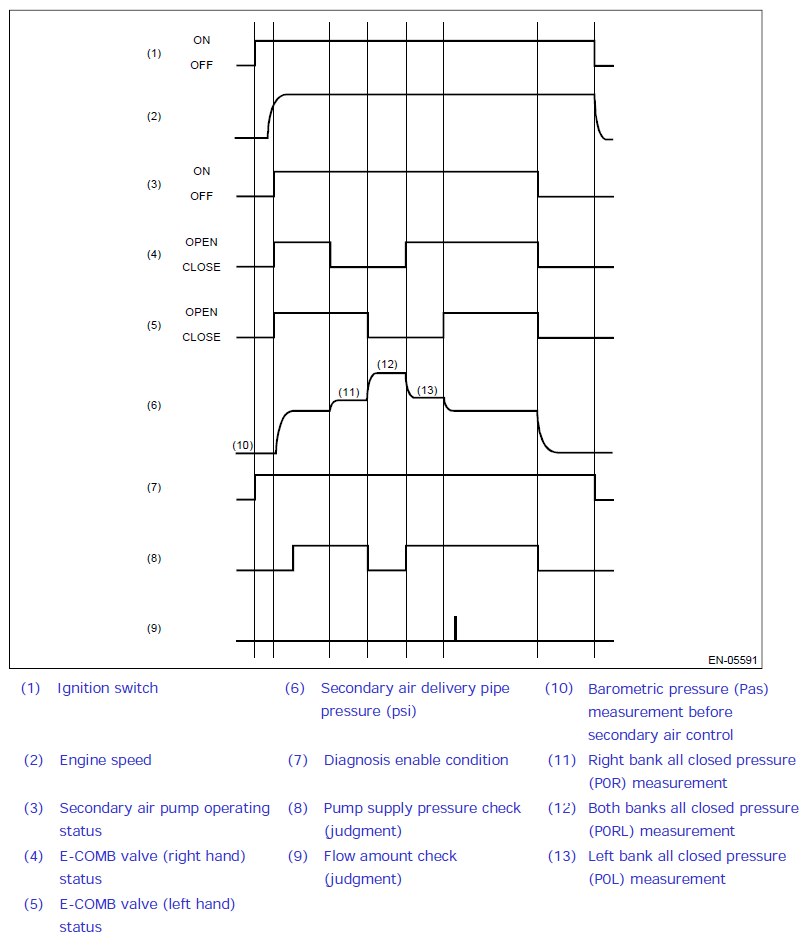

Measure secondary air delivery pipe pressure, pulse of secondary air delivery pipe pressure and secondary air pipe airflow amount.

G12456809

Courtesy of SUBARU OF AMERICA, INC.
