Main Shaft Assembly

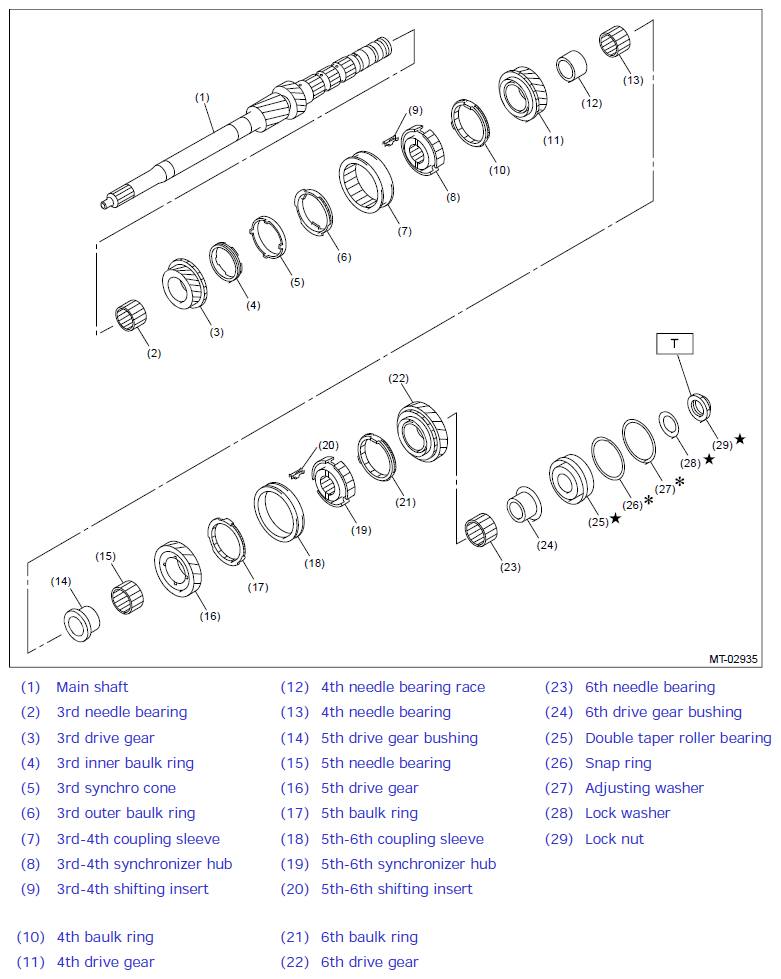

Fig 1: Exploded View Of Main Shaft Assembly Components
G12453261Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 392 (40.0, 289.1)
