Extension Case: Assembly

Install the reverse check system. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>Reverse Check System>INSTALLATION
Install the extension case oil seal. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>Oil Seal>REPLACEMENT

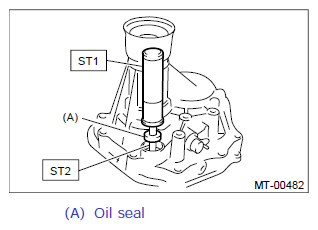

Using the ST, install the shifter arm shaft oil seal.
ST1 18657AA000 INSTALLER

ST2 18671AA000 OIL SEAL GUIDE

Courtesy of SUBARU OF AMERICA, INC.
Install the oil plate.

Courtesy of SUBARU OF AMERICA, INC.
Select the adjusting washer, and attach to the extension case. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>Extension Case>ADJUSTMENT
Install the taper roller bearing (extension case side) outer race to the extension case.
CAUTION: Apply transmission gear oil onto sliding or revolving surfaces before installation.
Install the shift bracket.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Attach the oil guide and the transfer drive gear. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>Transfer Drive Gear>INSTALLATION
