Home >> Subaru >> 2018 >> WRX STI Limited >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System (STI) >> Front Exhaust Pipe >> Disassembly

Front Exhaust Pipe: Disassembly

  1. Remove the exhaust manifold RH upper cover.
  2. Remove the exhaust manifold RH and the exhaust manifold LH from the front exhaust pipe.

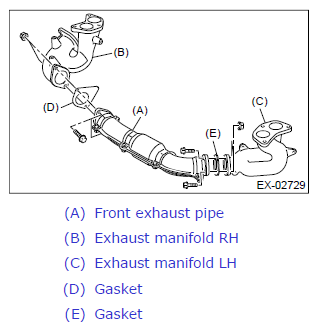

    G12437976
