Front Exhaust Pipe: Assembly

  1. Install the exhaust manifold RH and the exhaust manifold LH to the front exhaust pipe.
    NOTE: Use a new gasket.

    Tightening Torque:

    42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

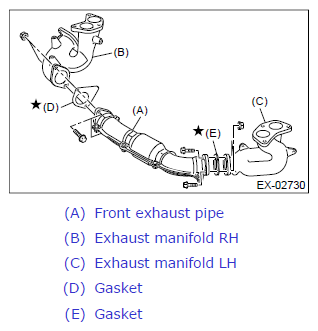

    G12437977
  2. Install the exhaust manifold RH upper cover.

    Tightening Torque:

    19 N.m (1.9 kgf-m, 14.0 ft-lb)
