Engine Oil Cooler: Removal

CAUTION: If engine oil is spilled onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Drain engine coolant. Ref. to COOLING(STI)>Engine Coolant>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  2. Remove the engine oil filter. Ref. to LUBRICATION(STI)>Engine Oil Filter>REMOVAL .

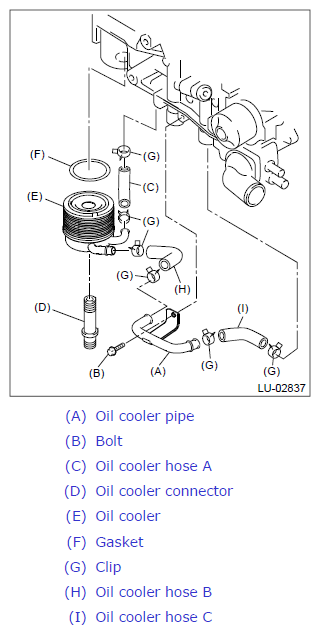

  3. Remove the bolt (B) holding the oil cooler pipe (A) to the oil pump.
  4. Remove the oil cooler pipe (A), oil cooler hose A (C), oil cooler hose B (H), and oil cooler hose C (I).
  5. Remove the oil cooler connector (D) and oil cooler (E).
    G12438111
