Bushing Front - Front Arm

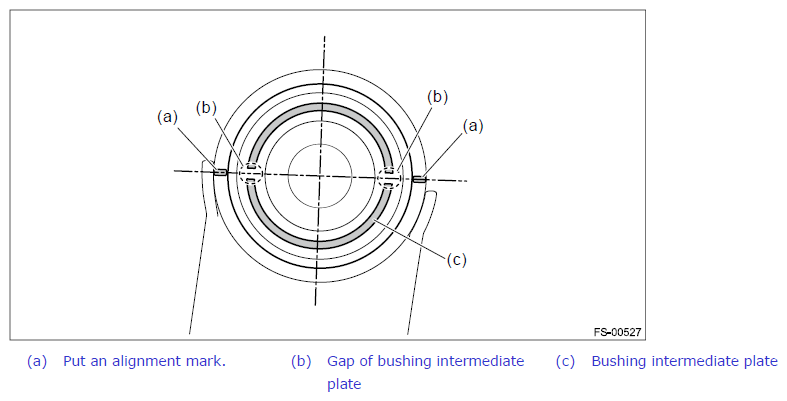

  1. Put an alignment mark on the front arm assembly based on the split portion of the bushing intermediate plate of the busing front - front arm.
    CAUTION: Always put an alignment mark for aligning the position on bushing installation.
    G12443171
  2. Using the ST and a press, remove the busing front - front arm.

    Preparation tool:

    ST: INSTALLER & REMOVER SET (927680000)

    G07913981
