Switch Assembly
WARNING: This page is about a different variant/trim than selected.

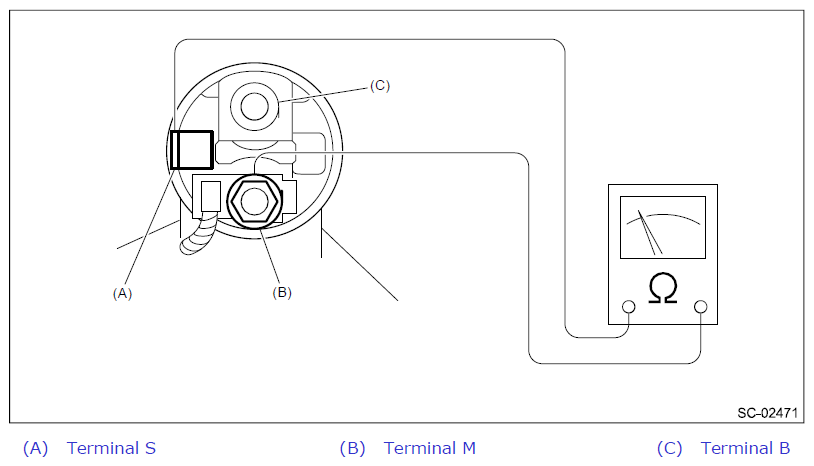

Using a circuit tester, check there is continuity between S terminal and M terminal, and between S terminal and ground. Also, check that there is no continuity between M terminal and B terminal.
| TERMINALS | STANDARD |
|---|---|
| Terminal S - Terminal M | 1 Ω or less |
| Terminal S - Ground | 1 Ω or less |
| Terminal M - Terminal B | 1 Ω or more |
