Section 63 (Horn System): Horn: Inspection
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
- Check the horn sounds when applying the battery voltage to the horn assembly.

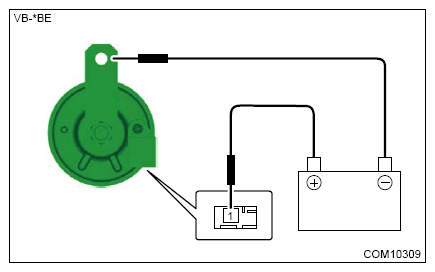

- Horn assembly Lo side
 Courtesy of SUBARU OF AMERICA, INC.
|

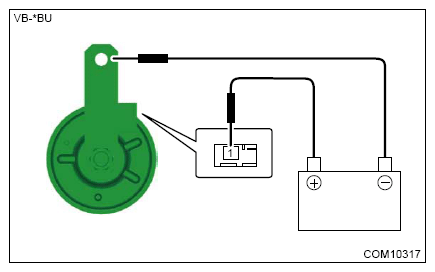

- Horn assembly Hi side
 Courtesy of SUBARU OF AMERICA, INC.
|
| Terminal No. |
Inspection conditions |
Specification |
| 1 (+) - Horn case (-) |
Apply battery voltage. |
Sounds |
- If it does not operate normally, replace the horn assembly.
