Front Fender

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

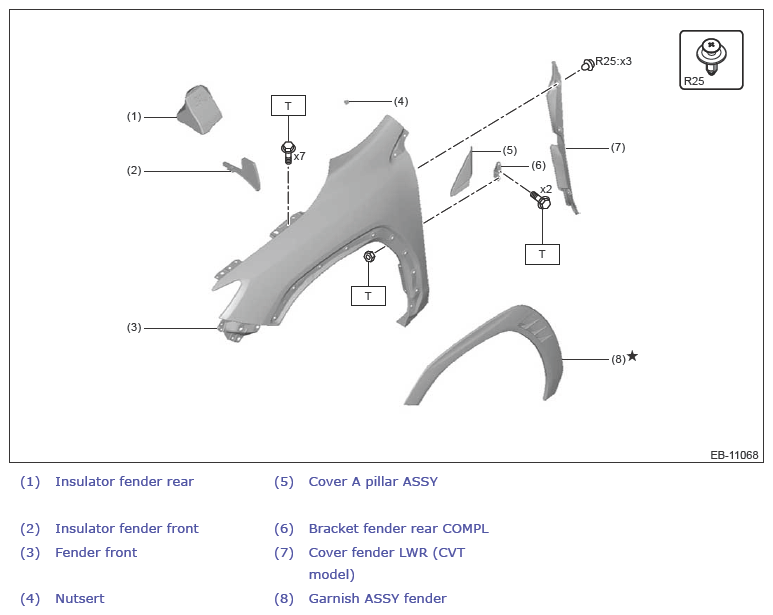

Fig 1: Front Fender Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 9 (0.9, 6.6)

NOTE:

For the procedures of the cover A pillar assembly, refer to "Door Sash (Tape/Molding)". Ref. to EXTERIOR BODY PANELS>DOOR SASH (TAPE/MOLDING)
For the components of the garnish assembly fender, refer to "Side Garnish & Side Spoiler" of "EXTERIOR/INTERIOR TRIM". Ref. to EXTERIOR/INTERIOR TRIM>GENERAL DESCRIPTION>COMPONENT>SIDE GARNISH & SIDE SPOILER
