Pillow Ball Bushing
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
- Before installation, inspect the following items and replace any faulty part with a new one.
- Check the arm assembly front for damage or cracks.
- Check the bushing for abnormal cracks, damage or fatigue.
- Check the boot on the ball joint for damage.
- Install the pillow ball bushing using ST1 and ST2.
NOTE:

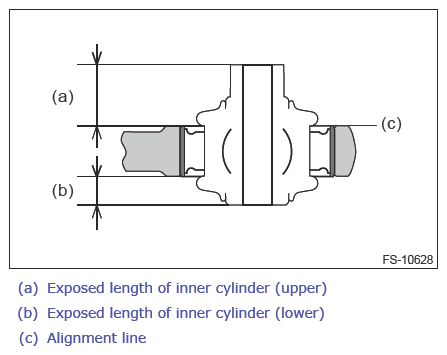

- Align the upper face of arm assembly front and the end of bushing during installation.
- Install so that the upper exposed length (a) of the bushing inner cylinder becomes longer than the lower exposed length (b).

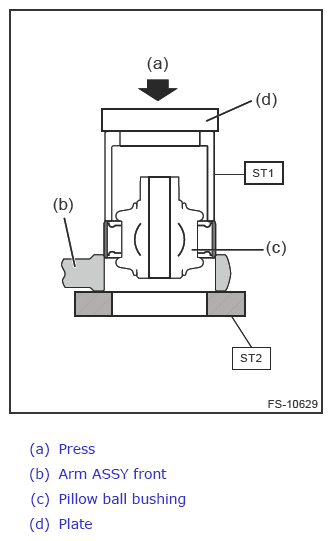

Preparation tool:
ST1: INSTALLER & REMOVER (20099AE020)
ST2: REMOVER (18723AA000)
NOTE:
Place a metal plate on the ST1 to use the press.
