System Block Diagram
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

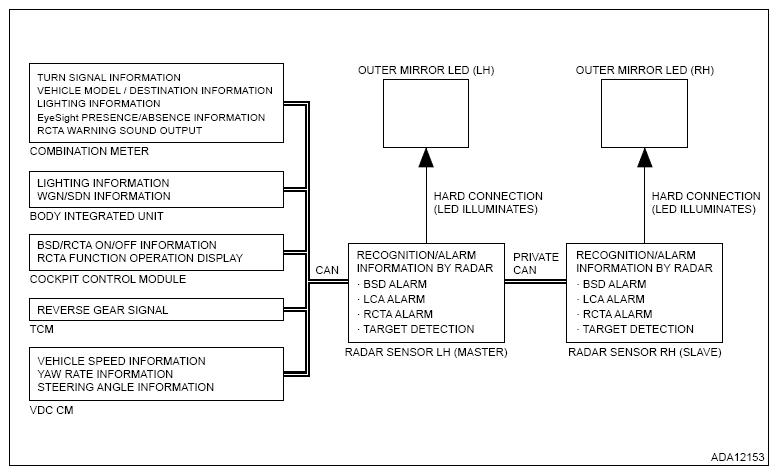

- BSD/RCTA system is configured by the following components.
- There is a control ECM in the radar sensor main body, which performs the vehicle identification and the alert judgment.
- The LH/RH radar sensors are identified as Master/Slave for control purposes. They are connected by the private CAN to execute alert judgment through mutual communication. The radar on the Master side receives the input from the vehicle CAN, and information necessary for alert judgment can be obtained from other modules via the vehicle CAN.
- The left and right outer mirror LEDs are directly driven by the signal from the radar sensor.
- Button switching information is transmitted from the cockpit control module via CAN by touch panel operation, and then the status of "BSD/RCTA" is switched between ON and OFF.
