Wiper Blade: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

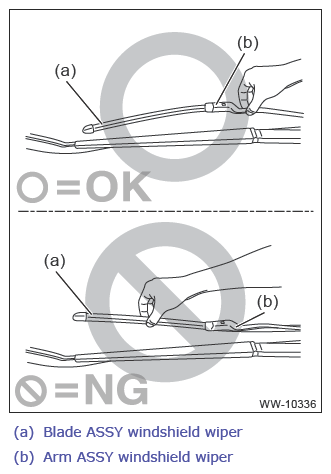

CAUTION:

When standing up the arm assembly windshield wiper, make sure to hold the arm portion. Holding the blade portion may cause the blade deformation due to warpage.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

When standing up the arm assembly windshield wiper, perform the driver's side first in order not to interfere the arms with each other.

Press the lock button (1).
Pull the blade assembly windshield wiper in the arrow direction (2) to remove the arm assembly windshield wiper.

Courtesy of SUBARU OF AMERICA, INC.
