Washer Fluid Level Sensor

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sensor washer fluid level.

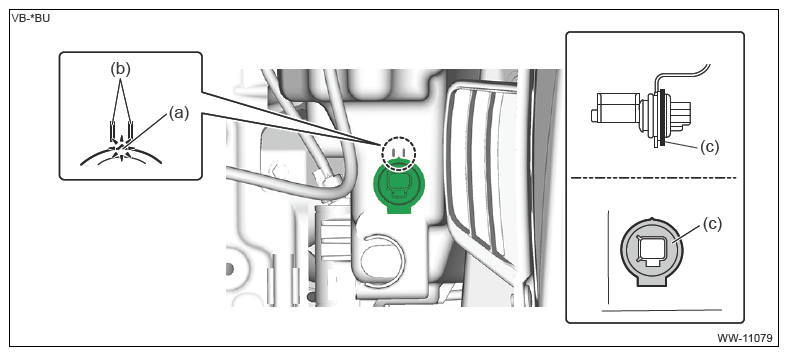

    1. Using new packing, align the protrusion (a) of the sensor washer fluid level with a center position of double line marks (b) on the tank washer side, and push the flat surface (c) to install.
      CAUTION:
      • Do not hit or apply any impact to the sensor washer fluid level when it is reused, because it has a poor resistance to impact.
      • When the installation is difficult, apply washer fluid to the packing. Do not use silicone oil.
      G14612435Courtesy of SUBARU OF AMERICA, INC.
    2. After installing the sensor washer fluid level, perform the following confirmations.
      • There is no gap between the tank washer and the packing.
      • There is no gap between the packing and the sensor washer fluid level.
      • There is no turn over to the packing and its peripheral area.
  2. Connect the hose assembly windshield washer.
  3. Connect the connector.
  4. Add new washer fluid.
  5. Install the mud guard front LH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>INSTALLATION
  6. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
