Model With Washer Nozzle
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Since the arm assembly windshield wiper on the left and right sides can interfere with each other, install the passenger's side first.

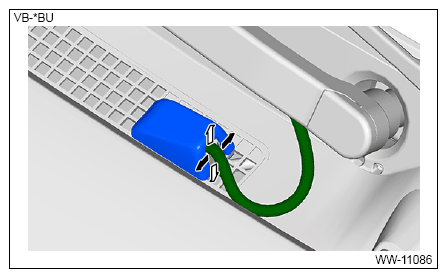

- When the hose wiper arm washer is removed from the joint washer hose, refer to "INSTALLATION" of "Front Washer". Ref. to WIPER AND WASHER SYSTEMS>FRONT WASHER>INSTALLATION>WIPER ARM WASHER NOZZLE

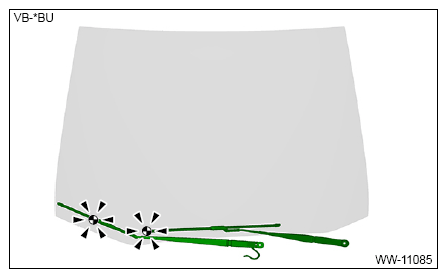

- Install the arm assembly windshield wiper.

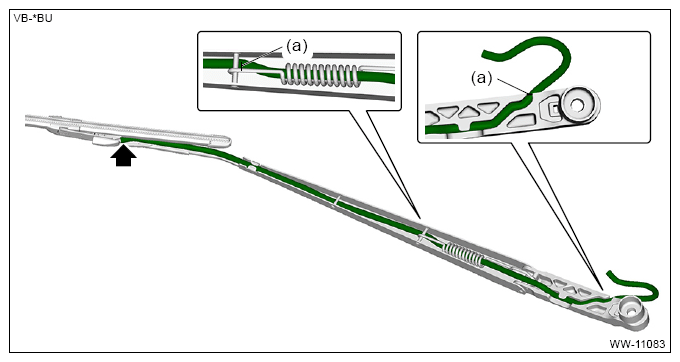

- Align the alignment marks (a), and install the hose wiper arm washer to the arm assembly windshield wiper assistor.
- Align the blade assembly windshield wiper with the wiper set mark of the windshield glass to install the arm assembly windshield wiper.
Tightening torque:
22 N.m (2.2 kgf-m, 16.2 ft-lb)
- Align the alignment marks (a), and install the hose wiper arm washer to the arm assembly windshield wiper assistor.
- Install the cover windshield wiper arm.
- Operate the windshield wiper once to check that the stop position is aligned with the wiper set mark.
- Make sure that the hose wiper arm washer and the cover joint do not interfere during windshield wiper operation.
