Engine Side

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new gasket to the thermostat.
    NOTE:

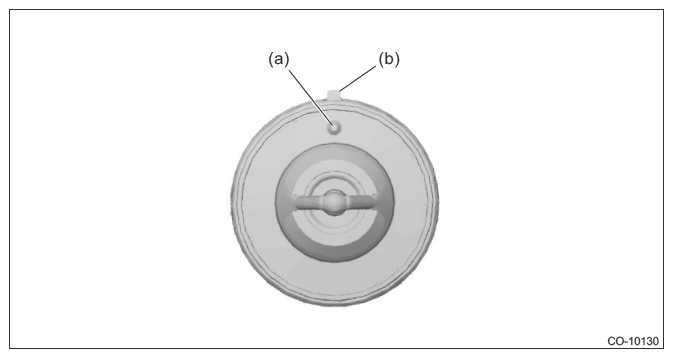

    Align the positions of the jiggle pin (a) and the positioning rib (b) of the gasket.

    G11253591Courtesy of SUBARU OF AMERICA, INC.
  2. Install the thermostat.
    NOTE:

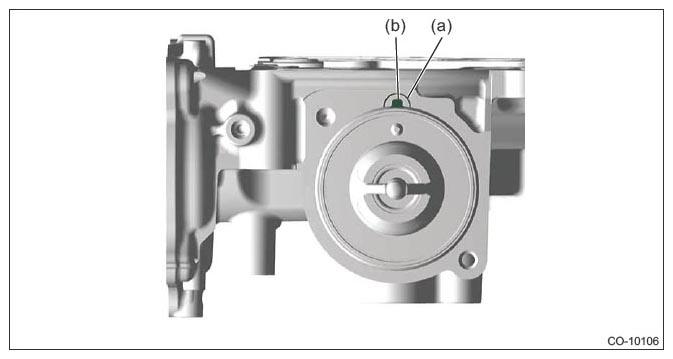

    Align the positions of groove (a) of the oil pan upper and the positioning rib (b) of the gasket.

    G11253592Courtesy of SUBARU OF AMERICA, INC.
  3. Install the thermostat cover.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

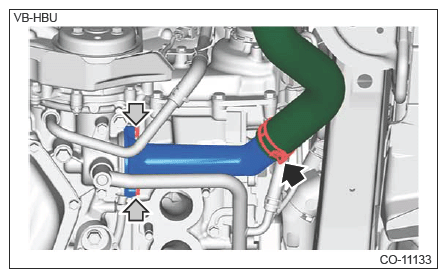

  4. Connect the radiator outlet hose.
    G14601379Courtesy of SUBARU OF AMERICA, INC.
  5. Install the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>INSTALLATION .
  6. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  7. Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
