Radiator & Radiator Fan

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

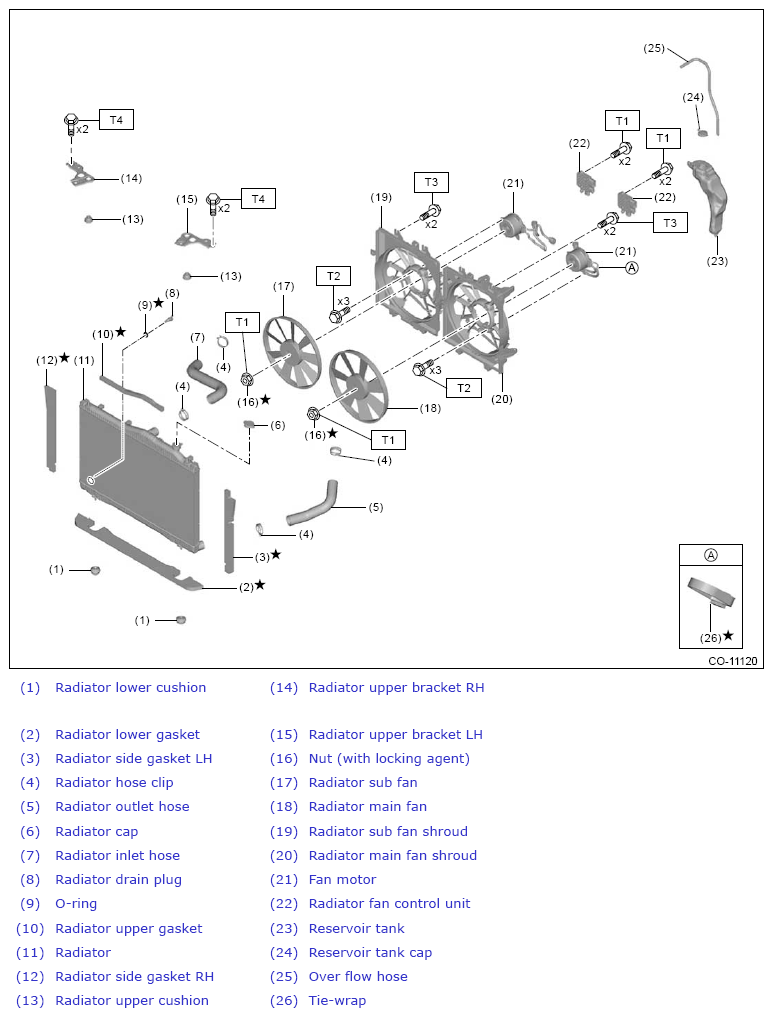

Fig 1: Radiator And Radiator Fan Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 4.4 (0.4, 3.2)

T3: 7.5 (0.8, 5.5)

T4: 27 (2.8, 19.9)
