Glass Lid
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

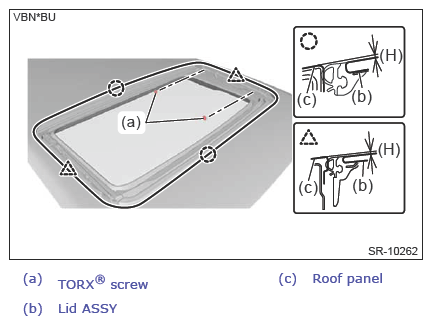

- Using a new TORX® screw, temporarily install the lid assembly.
- Perform the open/close operation checks for the lid assembly.
- Tighten the screw to the specified torque using TORX® T25 while adjusting the height of the lid assembly to the standard value.
Specification:
Lid assembly to Roof panel (H): 0.7±1 mm (0.03±0.04 in)
Tightening torque:
4.5 N.m (0.5 kgf-m, 3.3 ft-lb)
- Install the cover lid.
- Perform the initialize operation. Ref. to SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)>SUNROOF CONTROL SYSTEM>OPERATION>INITIALIZE OPERATION
