Home >> Subaru >> 2018 >> WRX Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Mechanical (Except For STI) >> General Description >> Components With Torque Specifications >> Rocker Cover

Rocker Cover

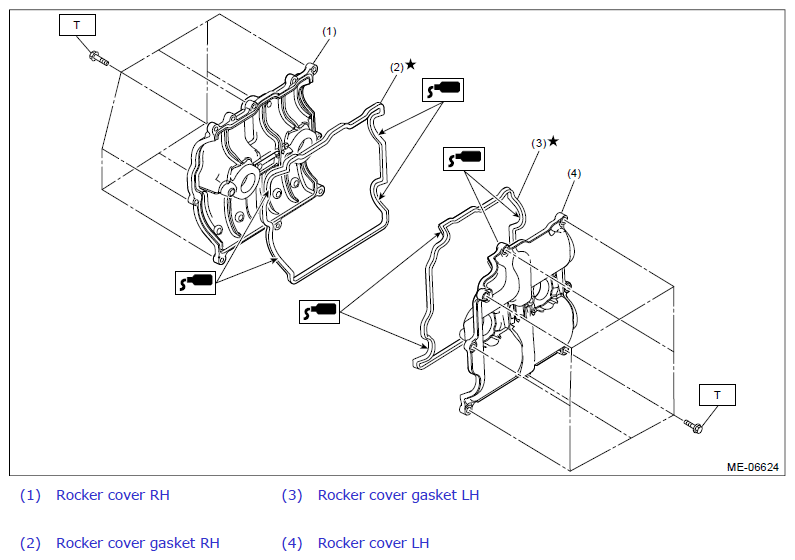

Fig 1: Exploded View Of Rocker Cover Components

G12441433

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL(EXCEPT FOR STI)>Rocker Cover>INSTALLATION .
