Cylinder Block 2

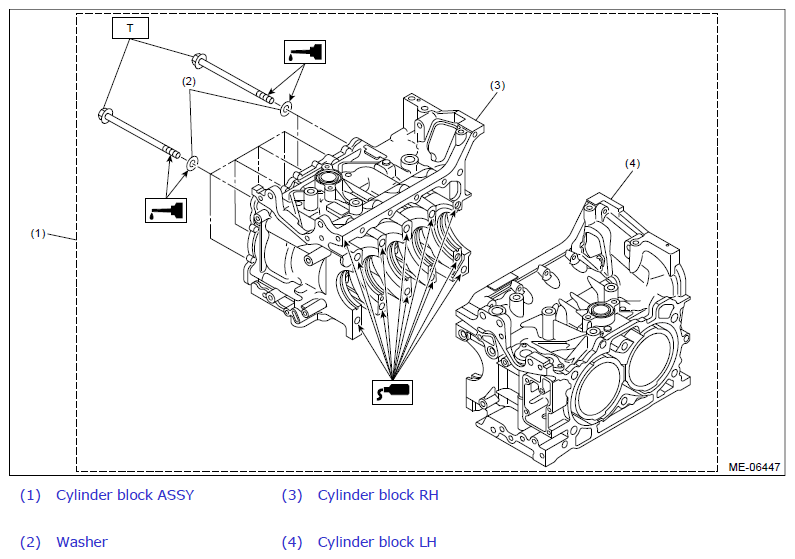

Fig 1: Exploded View Of Cylinder Block 2 Components
G12441438Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to MECHANICAL(EXCEPT FOR STI)>Cylinder Block>INSTALLATION .
